- Two motorized 10" drive wheels assist in moving heavy loads up to 1,000 lbs and may reduce strain experienced by users when pushing heavy trucks and moving long distances.
- Handbrake is available for emergency purposes.
- Centralized control system features variable speed from 0-3 mph with forward and reverse settings.
- Removable key prevents unauthorized use of power.

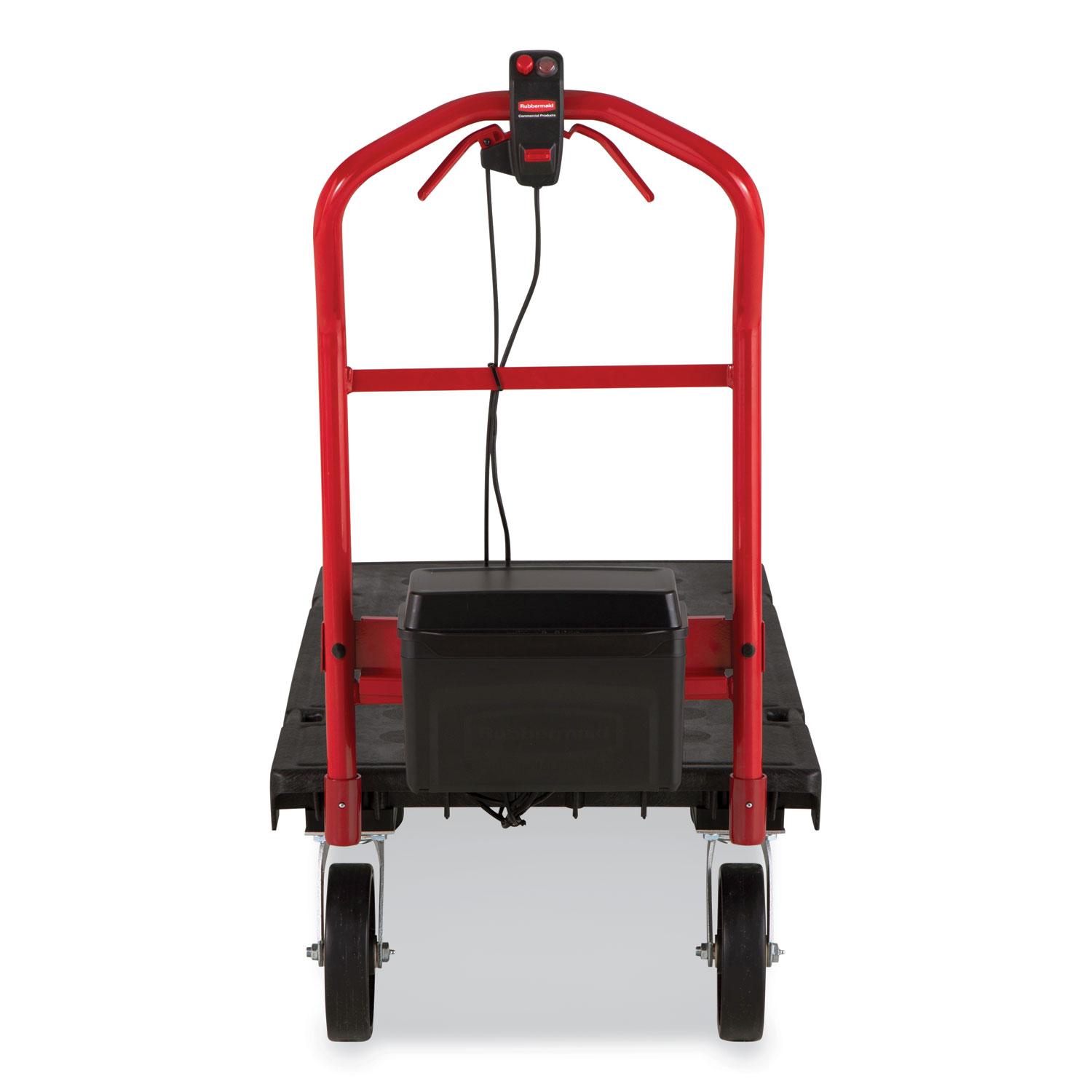

Ideal for users who want to add the benefit of motorized power for moving heavy loads to existing Rubbermaid Commercial Platform Trucks. Two motorized 10" drive wheels assist in moving heavy loads up to 1,000 lbs and may reduce strain experienced by users when pushing heavy trucks and moving long distances. Dual onboard battery components provide back-up power without having to plug in the entire truck; minimizing costly workflow disruptions due to battery switchouts. Handbrake is available for emergency purposes. Centralized control system features variable speed from 0-3 mph with forward and reverse settings. Removable key prevents unauthorized use of power. Medium—Designed for 24" x 48" platform trucks. Motor/Engine Type: DC Motor; Control Set Indicator: Yes; Control Set Details: Forward/Reverse Operation Toggle; Left-Side Handbrake Grip; Right-Side Acceleration Grip; Speed-Control Dial; Minimum Propulsion Speed (mph): 0.5 mph.
Warranty: Manufacturer's two-year warranty.
| Global Product Type | DC Motor Conversion Kit, Platform Truck |
| Motor/Engine Type | DC Motor |
| Color(s) | Black/Red |
| Control Set Indicator | Yes |
| Control Set Details | Forward/Reverse Operation Toggle; Left-Side Handbrake Grip; Right-Side Acceleration Grip; Speed-Control Dial |
| Color Family | Black |
| Minimum Propulsion Speed (mph) | 0.5 mph |
| Maximum Propulsion Speed (mph) | 3 mph |
| Maximum Load Capacity (lb) | 1,000 lb |
| Safety/Security Feature Indicator | Yes |
| Safety/Security Feature Details | Emergency Stop; Keyed Control Box Lock |
| Batteries Included | Yes |
| Battery Type | Lithium-Ion |
| For Use With | Rubbermaid Commercial® FG443600BLA, FG443610BLA, FG444100BLA Platform Trucks; 2173520 Universal Motor Kit Chargers; 2173664 Universal Motor Kit Batteries |
| Battery Voltage | 60 V |
| Battery Amp Hours | 4 Ah |
| Run Time/Charge (Continuous) | 2 hr |
| Recharge Time (Full Capacity) | 80 min |
| Weight (Fully Assembled) | 61.73 lb |
| Compliance Standards | IPX4 Rated |
| Pre-Consumer Recycled Content Percent | 0% |
| Total Recycled Content Percent | 0% |
| Special Features | Medium—Designed for 24" x 48" platform trucks. |
| UPC | 086876244281 |
| BulletedCopy | - Two motorized 10" drive wheels assist in moving heavy loads up to 1,000 lbs and may reduce strain experienced by users when pushing heavy trucks and moving long distances.
- Handbrake is available for emergency purposes.
- Centralized control system features variable speed from 0-3 mph with forward and reverse settings.
- Removable key prevents unauthorized use of power.
|
| Country | CN |
| Recycled | N |
| WARRANTY | Y |
| MPN | 2173663 |
| UNSPSC | 24101504 |
| UPC |
086876244281 |
| MPN |
2173663 |
